English
ATX

Powerful Computing · Boundless Expansion

Accelerate Edge AI Computing Innovation

ATX

HomeProductEmbedded SystemATX
M24-RPLS-ATX04

Decenta ATX04 is a standard ATX form factor motherboard, which is built on Intel? Q670 chipset.  It has strong performance and scalability, making it widely used in Industrial automation, embedded systems, communication equipment, industrial servers and other scenarios.

Main Features

  • Intel? LGA1700 Socket:  Ready for Bartlett Lake  & 14th/13th/12th gen Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? processor

  • Support 4x DDR5 5600/4800MT/s U-DIMM, Dual Channel, up to 192GB

  • Support VGA/HDMI?/DP Tri-display

  • 1x M.2 E-Key 2230 Slot  for Wi-Fi module, Support Wi-Fi 6E & Bluetooth 5.3

  • 2x M.2 M-Key 2242/2280 Slots for SSD

  • 2x PCIe 5.0 X16 Slots(Support 1x16 or 2x8 mode), 2x PCIe 4.0 X4 Slots(X4 Signal), 2x PCIe 3.0 X4 Slots(X2 Signal), 1x PCI Slot

  • Support TPM 2.0,  Watchdog

M24-RPLS-ATX04

3

2

M24-RPLS-ATX04

3

2

  • Product Specifications

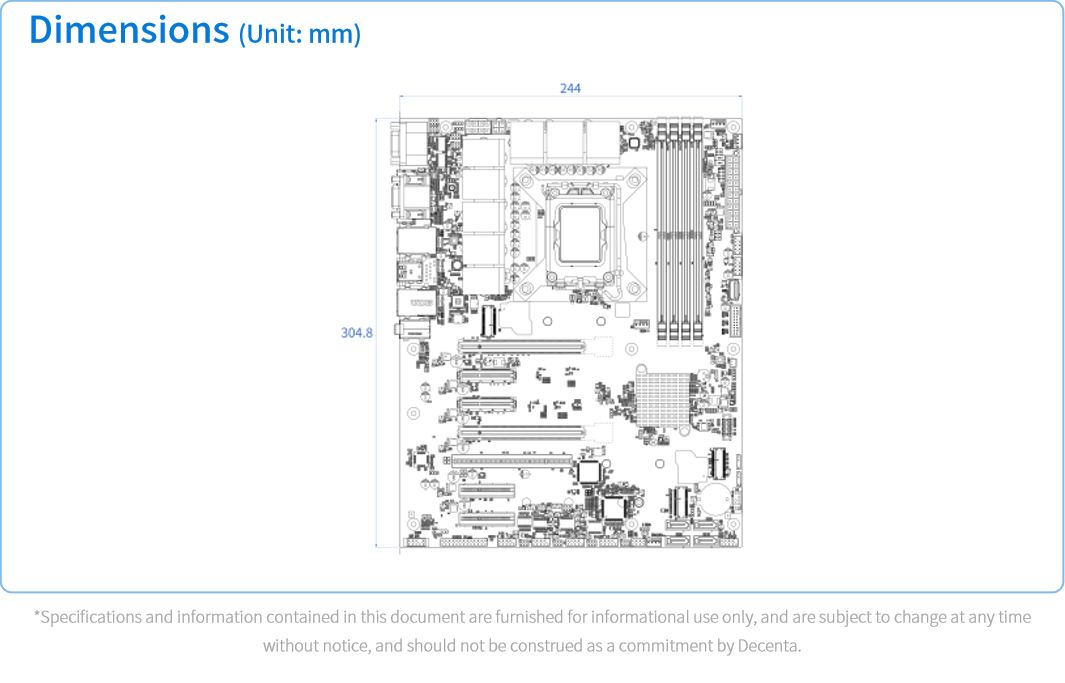

  • Product Dimension Drawing

Document
Download

Fill in and verify your email to download detailed product documents.

  • Get Verification Code
